Double Stack

Operating rinciple

Divide the parking space into two levels, upper and lower, or above, and use a lifting mechanism or pitch mechanism to directly store or remove the car from the loading plate. The lower level self parking requires the vehicles in the lower parking space to be moved away in order to access the vehicles in the upper parking space. This type of equipment is suitable for enterprises, institutions, residential areas, basements, and other places.

Equipment parameters

Capacity specifications Sedan/SUV Number of vehicles/number of floors that can be made 2N (number of columns) * C (number of floors) vehicles
Collection time Around 30 seconds Rated speed 4m/min
Lifting method Motor+chain type/wire rope type Control system PLC system
Operating mode IC card+number buttons

CAD Structural diagram

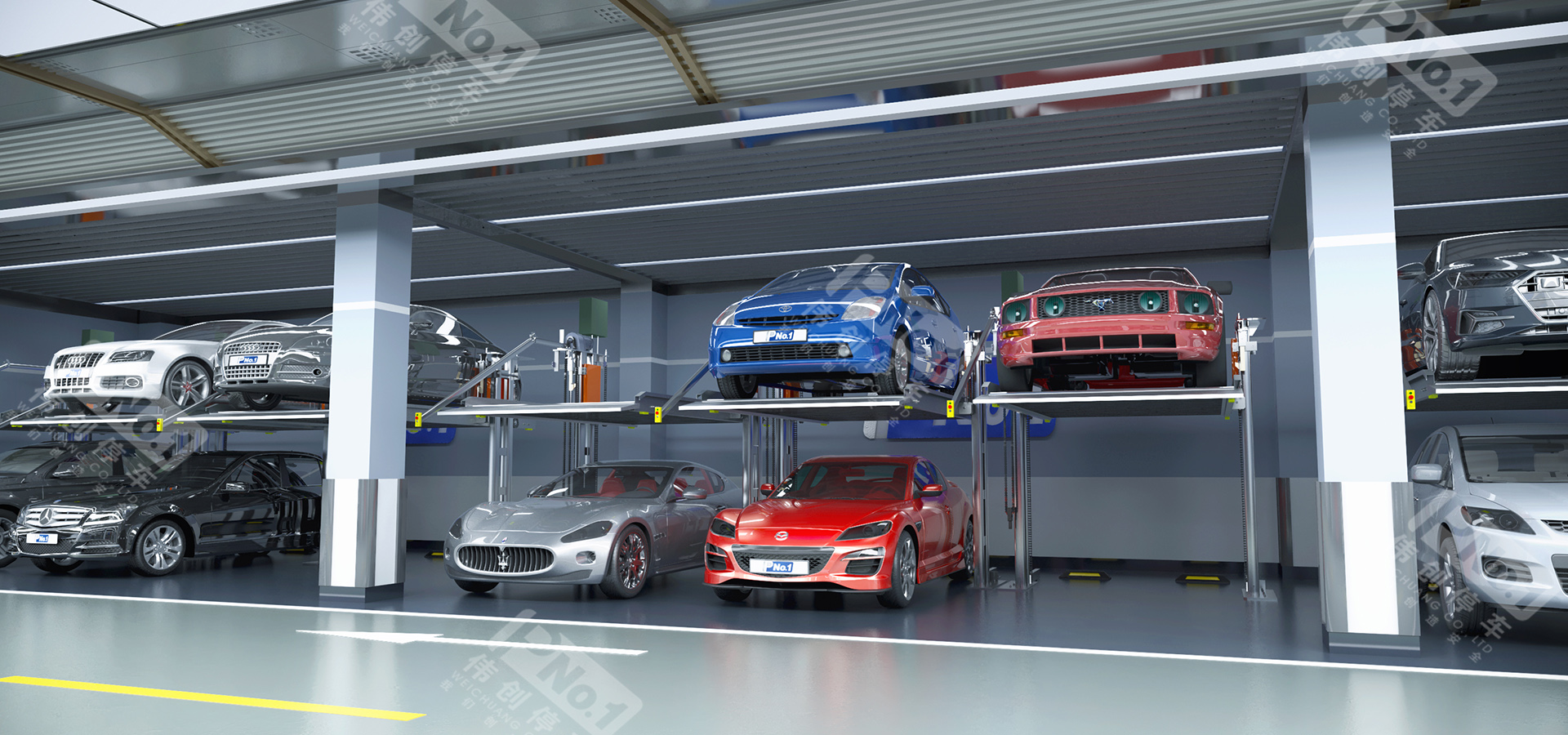

Rendering
