Palette Cart Type

Operating rinciple

The elevator vertically lifts the car from the entrance and exit to different levels. On the same level, the car moves horizontally through a lateral trolley, and vertically through a vehicle carrier intelligent carrier, achieving simultaneous access for multiple layers of vehicles. This device belongs to intelligent warehousing parking equipment, usually installed in the underground garage of a building or can be built on the ground, with most entrances and exits set on the ground. Automated Vehicle Access Technology – Dual Vehicle Board Switching Technology: No need to wait for vehicle board access, can achieve direct vehicle access, save vehicle access time, and improve vehicle access efficiency; Each loading dock can be equipped with a charging station for charging while parking, making it convenient and fast; Can safely and undamaged transport the vehicle out of the garage when the tires are flat; In rainy and snowy weather, it can have a good anti drip effect; Can adapt to vehicles with different wheelbases.

Equipment parameters

Project Pallet type Specifications Sedan/SUV
Number of vehicles/number of floors that can be made 2-8 floors Vehicle pick-up time/clearance time Around 70s
Rated speed Lift 60-90m/min/Shift 60-120m/min Control system PLC system
Operating mode IC card/license plate number/facial recognition Lifting method Double car board exchange

CAD Structural diagram

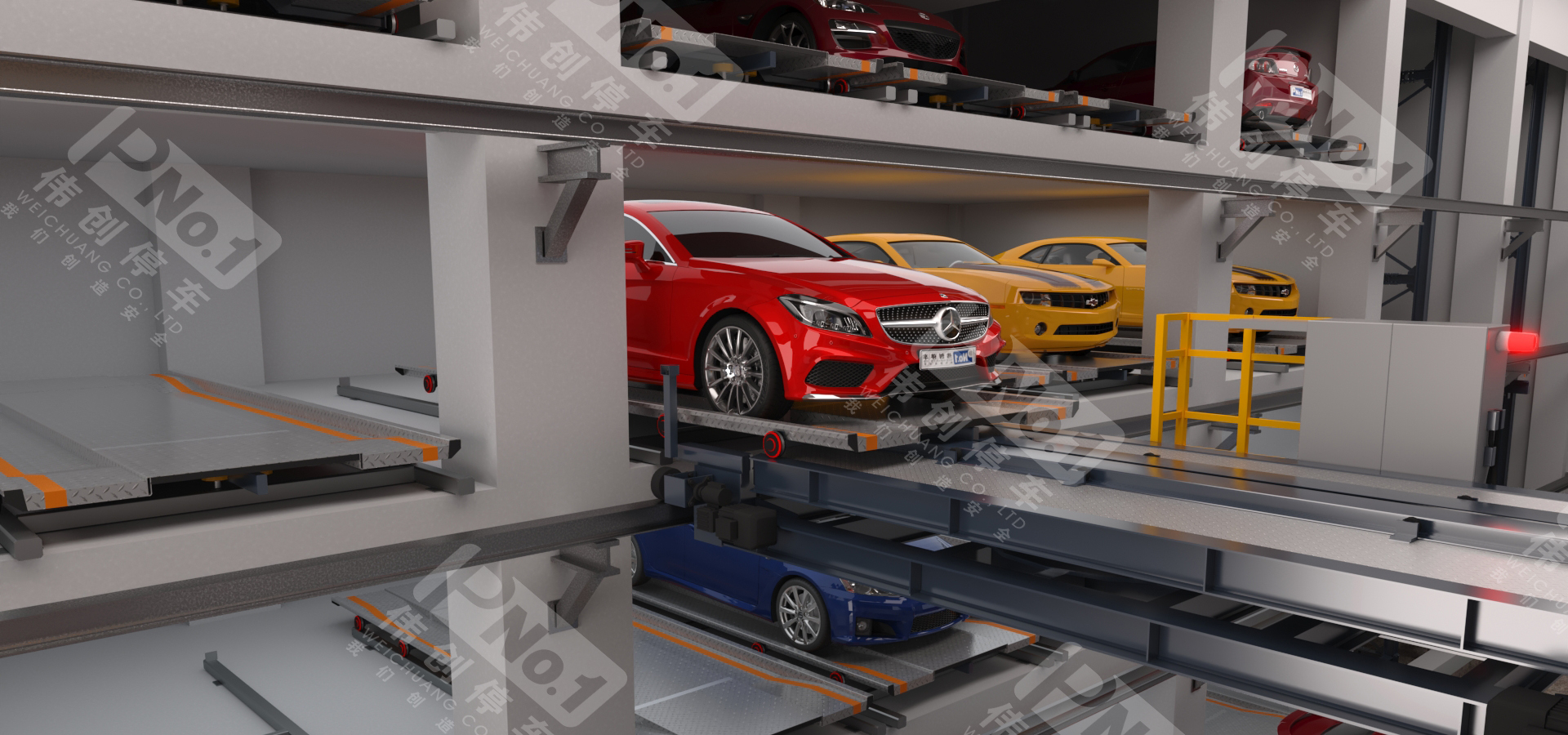

Rendering
