ROTARY

Operating rinciple

Multiple loading plates arranged in the vertical plane are used to access the car in a cyclic motion, inspired by the Ferris wheel in the amusement park. The vehicle resembles a tourist sitting in a suspended basket of the Ferris wheel. When the vehicle loading plate that needs to access the car moves in a clockwise/counterclockwise (nearest direction) cycle to the entrance and exit of the garage, the driver enters the garage to store or remove the car to complete the access process. It is commonly used in places where vehicles enter and exit hospitals, hotels, shopping malls, and other places.

Equipment parameters

Capacity specifications Sedan/SUV Number of vehicles/number of floors that can be made 2N (number of floors) -2 vehicles/4-11 floors
Vehicle pick-up time/clearance time 45-85S/maximum clearance time 15min Rated speed Lift 4.0-6.0m/min/
control system PLC system Operation method IC card+number buttons/facial recognition
Improvement methods Motor+chain type

CAD Structural diagram

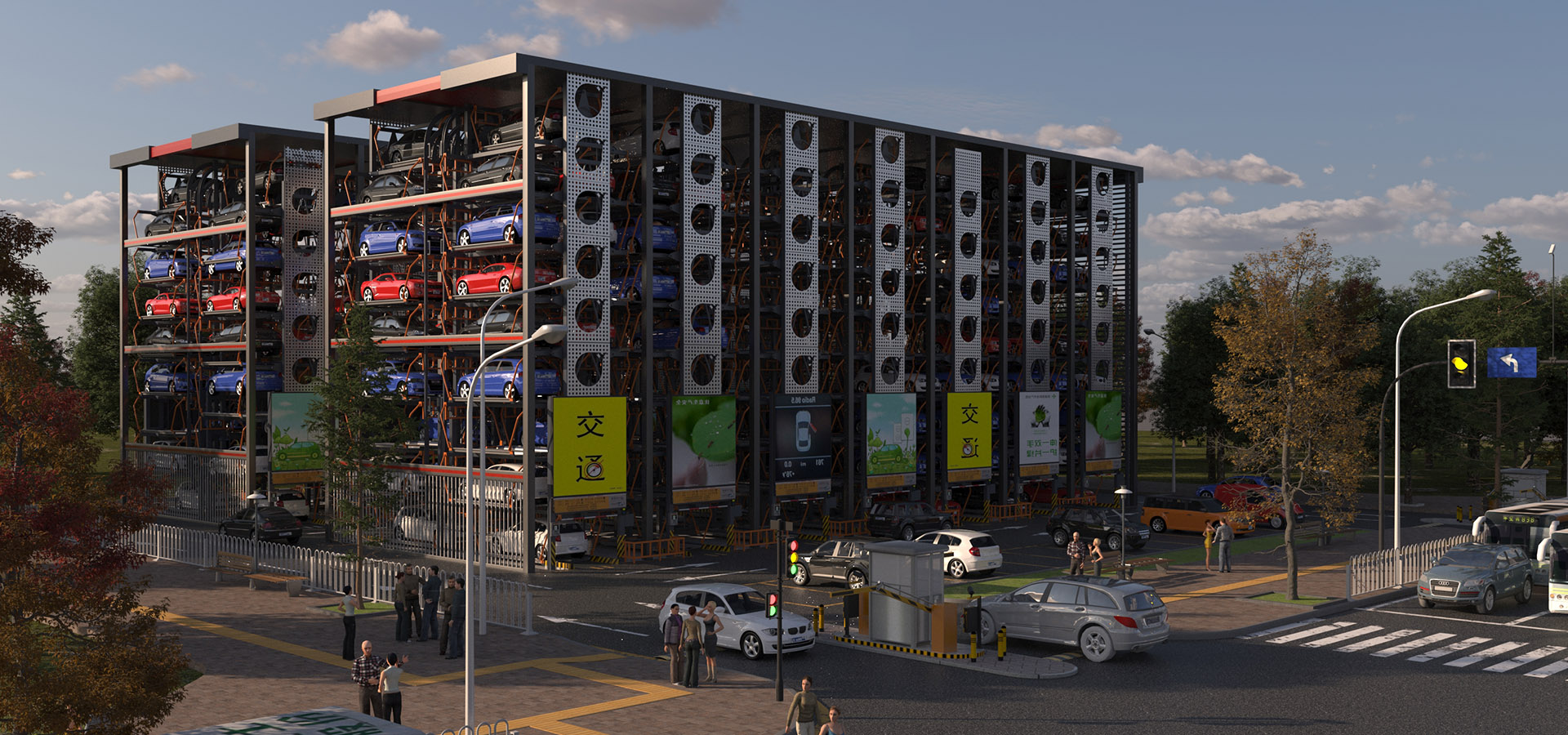

Rendering
